Description

Intended use

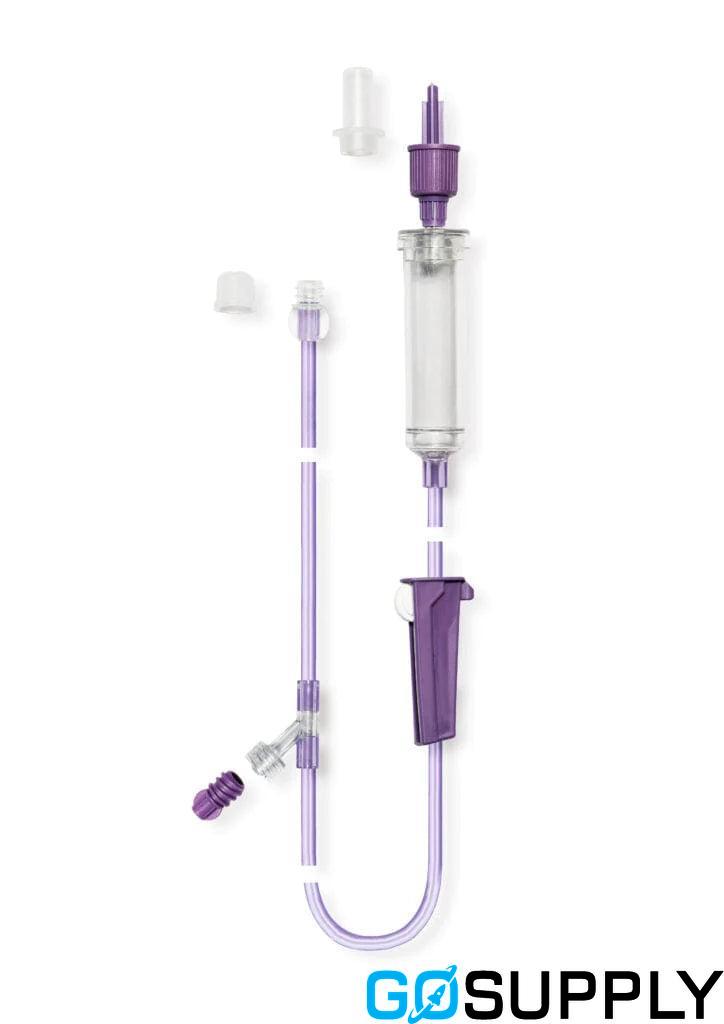

Single-use enteral administration sets designed for gravity (drip) feeding. They deliver tube feeds without a pump and are less precise than pump-assisted feeding. Use under the supervision of a healthcare professional.

Key features

• Drip chamber for priming and visual drop counting
• Manual roller clamp for adjustable flow control
• ENPlus cross-spike connection for feed packs/containers
• Patient-side ENFit connector (ISO 80369-3) with integrated ENFit medication port
• Y-port/two-port connector to attach a second feed container or a water/flush line
• Protective end/dust caps; lilac/purple enteral-only identification
• Materials: latex-free and DEHP-free

Variants

• Gravity Pack Set: Y-port and drip chamber for ENPlus-compatible feed packs and Flocare containers
• Gravity Pack & Bottle Set: As above, plus a universal bottle adaptor for direct bottle connection

Connections and compatibility

• Feed-side: Connects to ENPlus-compatible enteral feed packs (e.g., Nutrison) and Flocare containers. The Bottle & Pack variant includes a universal bottle adaptor for bottle connection.
• Patient-side: Screw the ENFit connector onto the feeding tube until snug; do not overtighten.

Operation (summary)

1. Close the roller clamp. Connect the set to the feed container and hang on a drip stand.
2. Prime: Squeeze the drip chamber to about halfway. Open the clamp to fill the line and expel air, then close the clamp.
3. Connect to the feeding tube. Open the clamp to start feeding and fine-tune the flow with the roller clamp.
4. Check the feed container and flow regularly; do not allow the container to run empty.

Gravity flow guidance

Approximate guide (drops/min ≈ mL/hr). Actual flow varies with formula viscosity, head height, and patient factors. - 25 ≈ 7 - 50 ≈ 13 - 75 ≈ 20 - 100 ≈ 27 - 125 ≈ 33 - 150 ≈ 40 - 175 ≈ 47 - 200 ≈ 53 Monitor tolerance and adjust, especially with high-fibre or energy-dense formulas.

Care and disposal

• Prime the set before connecting to the patient
• Flush the feeding tube with prescribed water before and after feeds and medications, and at least three times daily, as directed
• Single-use only; replace and discard the set every 24 hours
• Store in a clean, dry environment away from dust and direct sunlight

Safety notes

• Gravity use only; not for use with enteral feeding pumps
• Use under medical supervision and confirm tube position before feeding
• Maintain aseptic handling throughout setup and use
• Monitor drip rate frequently to meet the prescribed regimen and patient tolerance
• Do not overtighten connections
