Description

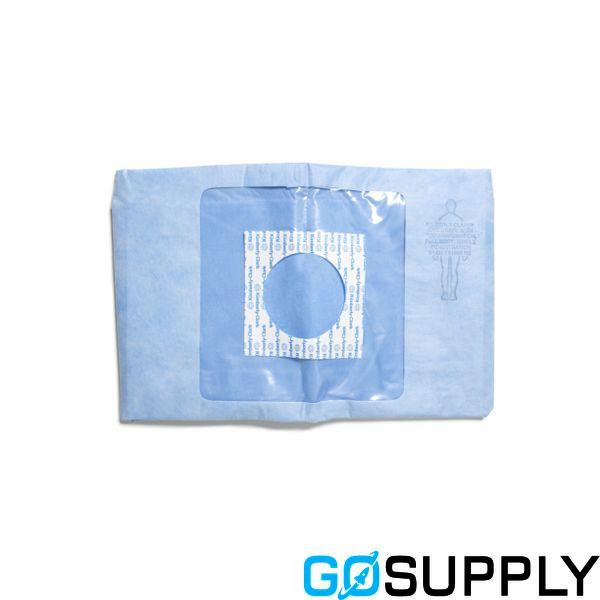

Multigate Protex4 Central Venous Catheter (CVC) Surgical Drapes are adhesive aperture drapes with targeted reinforcement, designed to establish and maintain a controlled sterile field for CVC insertion and minor procedures. Part of the Protex4 Advanced Drape Protection System, each drape uses a multi‑layer construction that combines an absorbent top layer with an impervious bi‑laminate backing and an additional ultra‑reinforcement layer in the critical zone. The barrier provides AAMI Level 4 protection across the entire drape and is designed to prevent fluid strikethrough and eliminate bacterial transfer at and around the insertion site. The material is soft and pliable yet strong and durable, with low linting performance and latex‑free composition. High absorption capacity with rapid fluid uptake aids fluid management while supporting procedural efficiency. Colour: Blue.

Key features and performance

• Multi‑layer system: absorbent top layer with impervious bi‑laminate backing, plus ultra‑reinforcement in the critical zone
• AAMI Level 4 protection across the entire drape; impervious barrier designed to prevent fluid strikethrough and eliminate bacterial transfer
• High absorption capacity with rapid fluid uptake
• Soft, pliable handling with strong, durable construction
• Low linting; latex‑free
• Colour: Blue

Sterility and use

• Supplied sterile; single‑use
• Non‑sterile versions also available
• Intended to establish and maintain a controlled sterile field for central venous catheter insertion and minor procedures, with enhanced absorbency and an impervious barrier at the insertion site

Variants and specifications

Adhesive reinforced square aperture

• Overall drape: 180 cm × 240 cm
• Aperture: adhesive square, 13 cm × 13 cm
• Reinforcement: ultra‑reinforcement around aperture, 75 cm × 75 cm
• Packaging: 20 sterile drapes per carton

Adhesive round aperture with tear‑line split

• Overall drape: 180 cm × 250 cm
• Aperture: adhesive round, 12 cm diameter, tear‑line split to aid placement around lines
• Window/reinforcement: clear PE area around aperture, 45 cm × 45 cm, with additional ultra‑reinforcement
• Packaging: 20 sterile drapes per carton (non‑sterile variant supplied 24 per carton)

Scope and exclusions

• These CVC drape variants do not include incise films, tethers, fluid pouches, or suction ports.
