Description

Overview

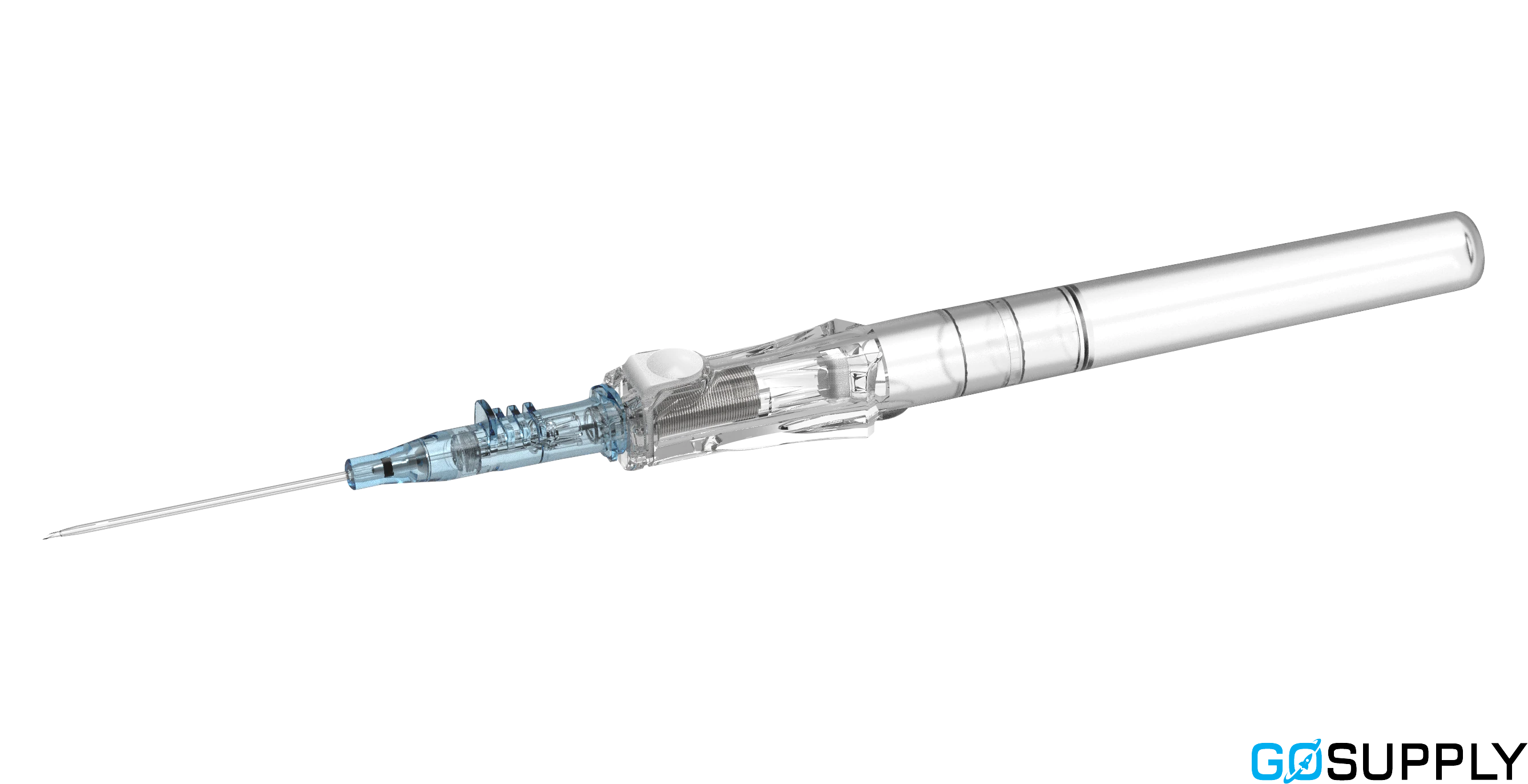

The BD Insyte Autoguard BC Pro Shielded IV Catheter (22 G × 1.00 in / 25 mm), Winged, is a peripheral IV catheter designed to support short‑term vascular access while helping reduce blood exposure and needlestick risk. It combines BD’s integrated Blood Control Technology, an automatic needle‑retraction safety mechanism, and an ergonomic BC Pro hub to aid controlled insertion and catheter advancement.

Key technologies and design

• Integrated Blood Control Technology: An internal septum restricts blood flow and contains blood in the hub until a secure luer connection is made (for up to approximately 10 seconds), helping reduce blood leakage and typically eliminating the need for venous compression during insertion.
• Shielded safety design: A push‑button mechanism retracts the introducer needle into a safety barrel to help reduce needlestick injuries and blood exposure after vessel entry.
• BD Instaflash Needle Technology (18–24 G, including 22 G): A notched needle designed to provide immediate flashback, confirming vessel entry and supporting first‑attempt success.
• BD Vialon catheter material: Softens in the vein (up to ~70%), supporting longer dwell times and helping reduce mechanical phlebitis.
• BC Pro ergonomic hub: Taller push tab with a three‑ridge grip to enhance control during insertion and advancement. Winged configuration supports secure handling and stabilization.

Technical specifications (22 G × 1.00 in, winged)

• Gravity flow rate: ~37 mL/min
• Pressure rating: 300 psi
• Cannula dimensions (approx.): ID 0.61–0.69 mm; OD 0.85–0.91 mm
• Color identification (22 G): Blue

Intended use

For peripheral intravenous cannulation to establish short‑term vascular access.

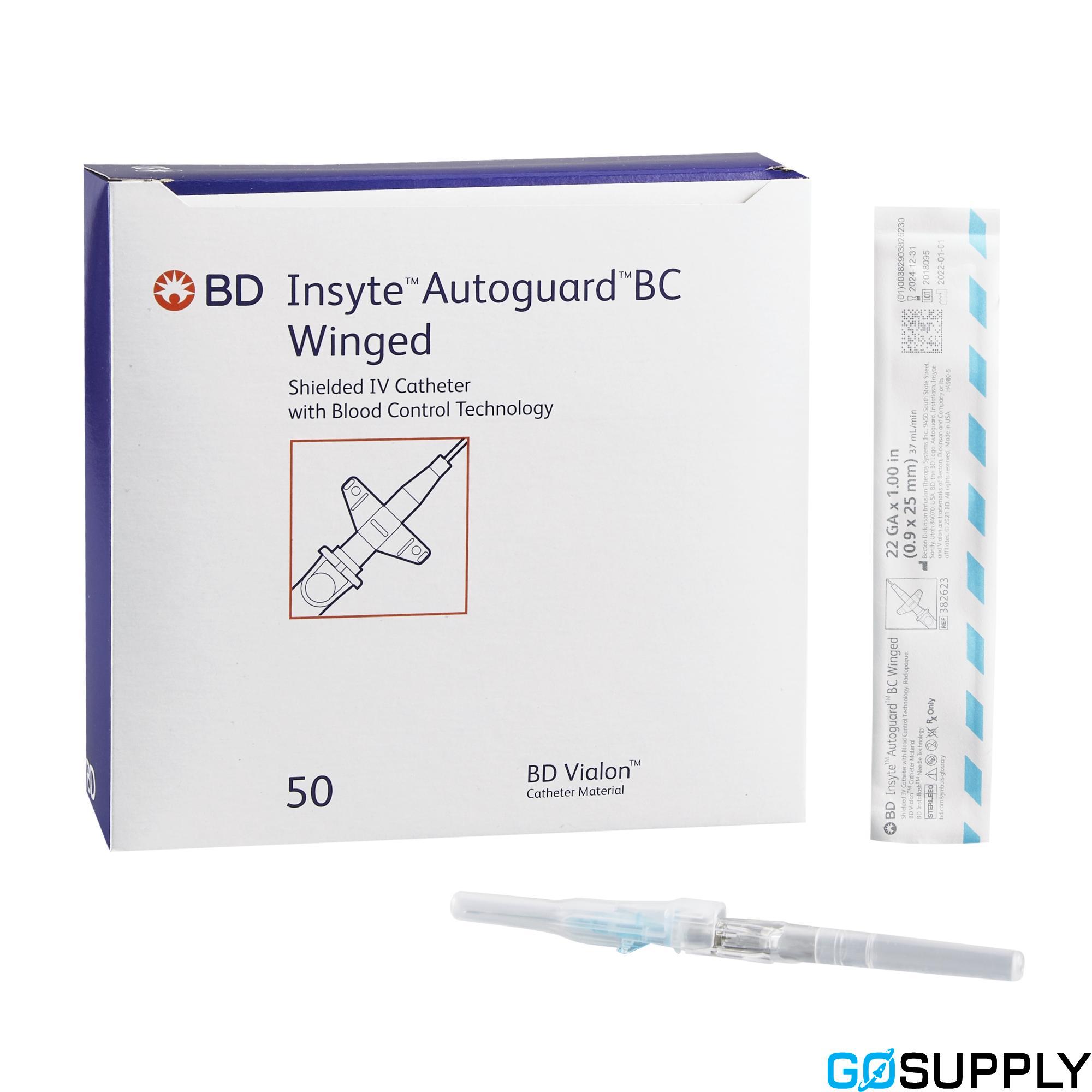

Configuration and identification

• Gauge and length: 22 G × 1.00 in (25 mm)
• Configuration: Winged, shielded safety catheter with integrated blood control
• Brand: BD (Becton, Dickinson and Company)

Additional information

Electronic Instructions for Use (eIFU) are available from BD. Follow institutional protocols and training for insertion, maintenance, and removal. Use appropriate aseptic technique and ensure a secure luer connection before releasing the catheter’s blood control feature into the fluid pathway.
