Description

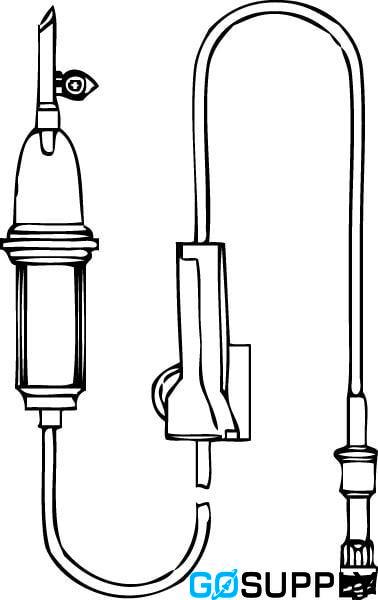

The ADMIN SET IV INTRAFIX P PRIMELINE CLASSIC is a specialized intravenous (IV) administration set designed to enhance infusion therapy. This versatile set is suitable for both gravity and pressure infusions, providing compatibility with non-dedicated infusion pumps and demonstrating pressure resistance up to 2 bar, in accordance with ISO 8536-8 standards.
Key Features
- Drip Chamber Design: The set features a 3-part drip chamber with an elastic bottom chamber and a transparent dome, allowing for clear visual monitoring.
- Air Vent Filter: Equipped with a micro-organism tight air vent filter and a closable snap cap, ensuring safe and efficient air management.
- Fluid Filter: Includes a 15µm mesh size fluid filter for maintaining a high flow rate.
Tubing and Flow Control
- Spike Design: The clear, easy-to-pierce spike has separated fluid inlet and air outlet for optimal performance.
- Tubing: Soft, clear tubing available in standard lengths of 150 cm and 180 cm, with dimensions of lumen 3 x 4.1 mm. The transparency allows for easy observation of air bubbles.
- Flow Adjustment: A roller clamp is included for fine adjustment of flow rates.
Additional Features
- Spike Protection and Tube Dock: Facilitates priming and enhances safety.
- Patient Connectors: Available with Luer Lock or Spinlock adapters, with some versions offering a back check valve.
Material Specifications
The set is not manufactured with latex, natural rubber, DEHP, or PVC (for PUR tubing versions), and some versions are BPA-free. This makes it suitable for a wide range of clinical environments, minimizing potential allergen exposure.
Optional Add-Ons
- Tubing Variants: Options include various tubing lengths and UV-protected tubing.
- Additional Components: Infuvalve® back check valve, Discofix® stopcock, and needle-free IV access connectors such as SafeFlow® or CareSite®.
Intended Use
Designed for the intravenous administration of fluids, this set is ideal for use in diverse clinical settings. It is recommended that pressure sets be changed after 24 hours when used with an infusion pump, aligning with best practice guidelines.
Product Codes
- Product Code: 19157-BR
- Alternate Item Code: 4062957E
The ADMIN SET IV INTRAFIX P PRIMELINE CLASSIC offers a comprehensive solution for healthcare professionals, combining advanced features with flexible configurations to meet specific clinical needs effectively.
